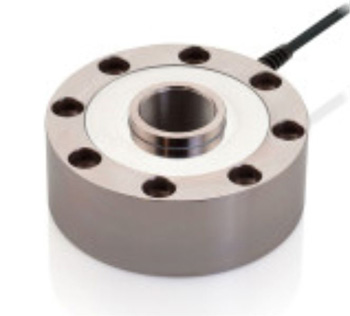

Precision load cell X-134-A

Area: 20 - 500 kN

Size: Ø 105 - 138 mm

Notes: Two inputs, 0.15% error

Specification

ROPERTIES	VALUE
Sensor strain gagefullbridge	35Ohm
Measuring range (F.S.) X-134-xx	20/50/100 200 /500 kN
Output signal, depending on type	nom.2 / 4 mV/V F.S.
Tolerance output signal	+/- 0,3 %
Zero signal unmounted	+/- 1 % of F.S
Overload safety	130 % of F.S
Combined error	+/- 0,15 % of F.S
Repeatability	+/- 0,02 % of F.S
Temp. effect on span	+/- 0,015 % of F.S /10°C
Temp. effect on zero	+/- 0,026 % of F.S /10°C
Life endurance alternating 50% load	107 cycles
Compensated temperature range	-10...+40 °C
Operating temperature range	-20...+60 °C
Protection (sensor)	IP65
Deflection at rated load	<0.5 mm
Cable length	3 m
Insulation material	PVC/PVC

PRECISION LOAD CELL FOR FORCES IN COMPRESSION OR EXTENSION

The load cell X-134 is suitable for force measurement in applications where high accuracies are required.

The load cells can be calibrated and supplied with a recognized calibration certificate if required. The sensors are based on proven strain gauge technology and provide a linear signal, proportional to the measured force. The solid steel housing and the sealed construction (IP65) guarantee a trouble-free operation, even under harsh environmental conditions.

Features:

· Solid steel housing

· Encapsulated version IP65

· Easy installation with metal screws

· Unit sensitivity

· Specific measuring ranges available
